401 VCO
Voltage‑Controlled Oscillator
CA$300.00
The 401 VCO is a precision analog oscillator built with temperature‑stable components, including a high‑headroom oscillation core. It provides four simultaneous waveforms, clean tracking, FM response, and reliable sync behavior. Form factor of the unit is compact (10HP) and can be powered from any standard Eurorack-format power supply.
Voltage Control (4 Inputs)
1V/Oct Input — precision 1 volt-per-octave input
FM Input — expressive modulation
PWM CV Input — modulates pulse width for animation and timbral movement
Sync Input — hard resets for harmonically locked or aggressive sync

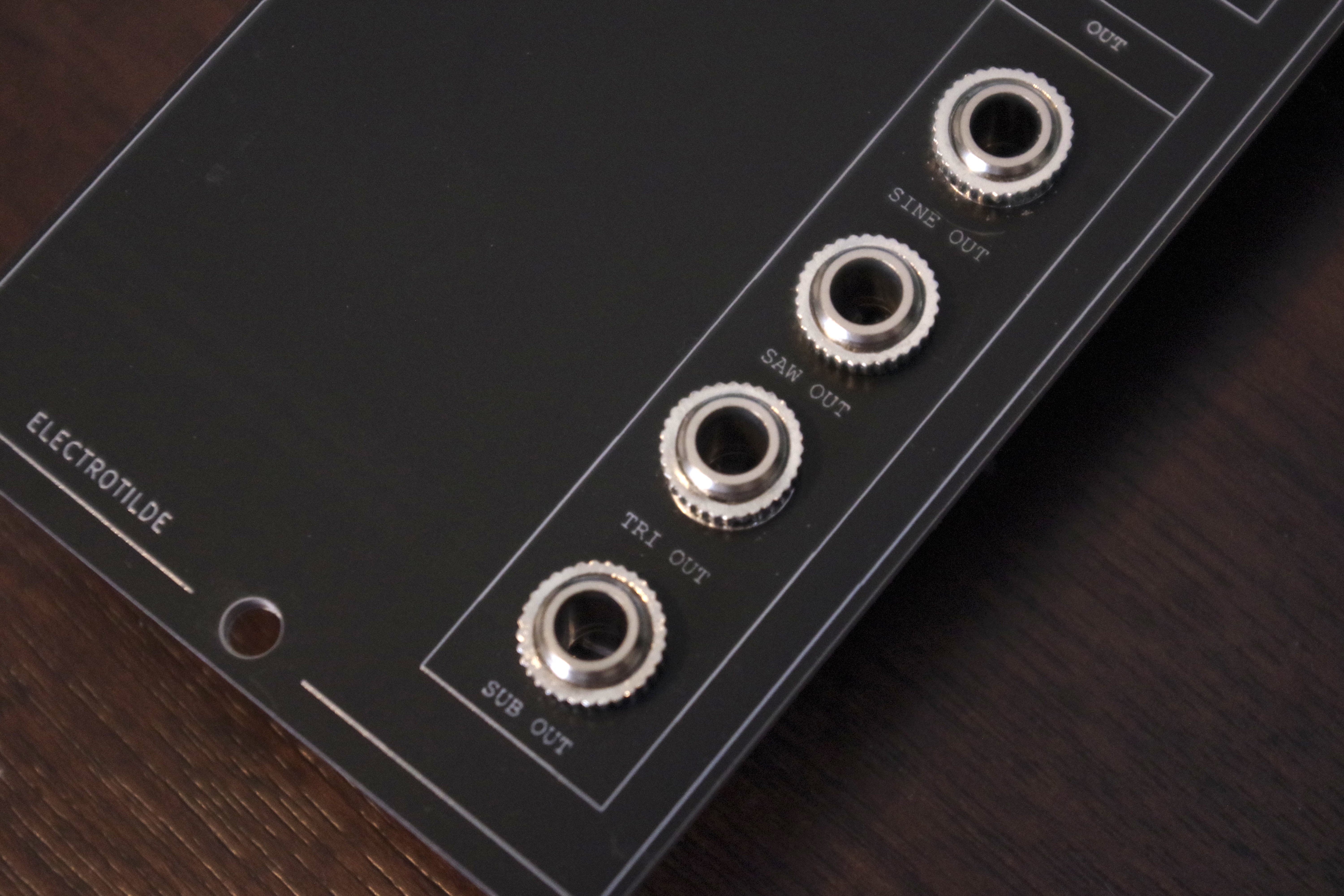

Waveforms (4 Outputs)
All waveforms are generated simultaneously and buffered for consistent levels:
Sine — low‑distortion sine, waveshaped from the triangle core
Triangle — smooth, stable triangle, ideal for FM
Saw — harmonically rich saw, classic analog spectrum
Sub‑Oscillator — divided‑by‑2 square wave for weight and depth
Each waveform is available on its own mono 3.5mm dedicated output jack.

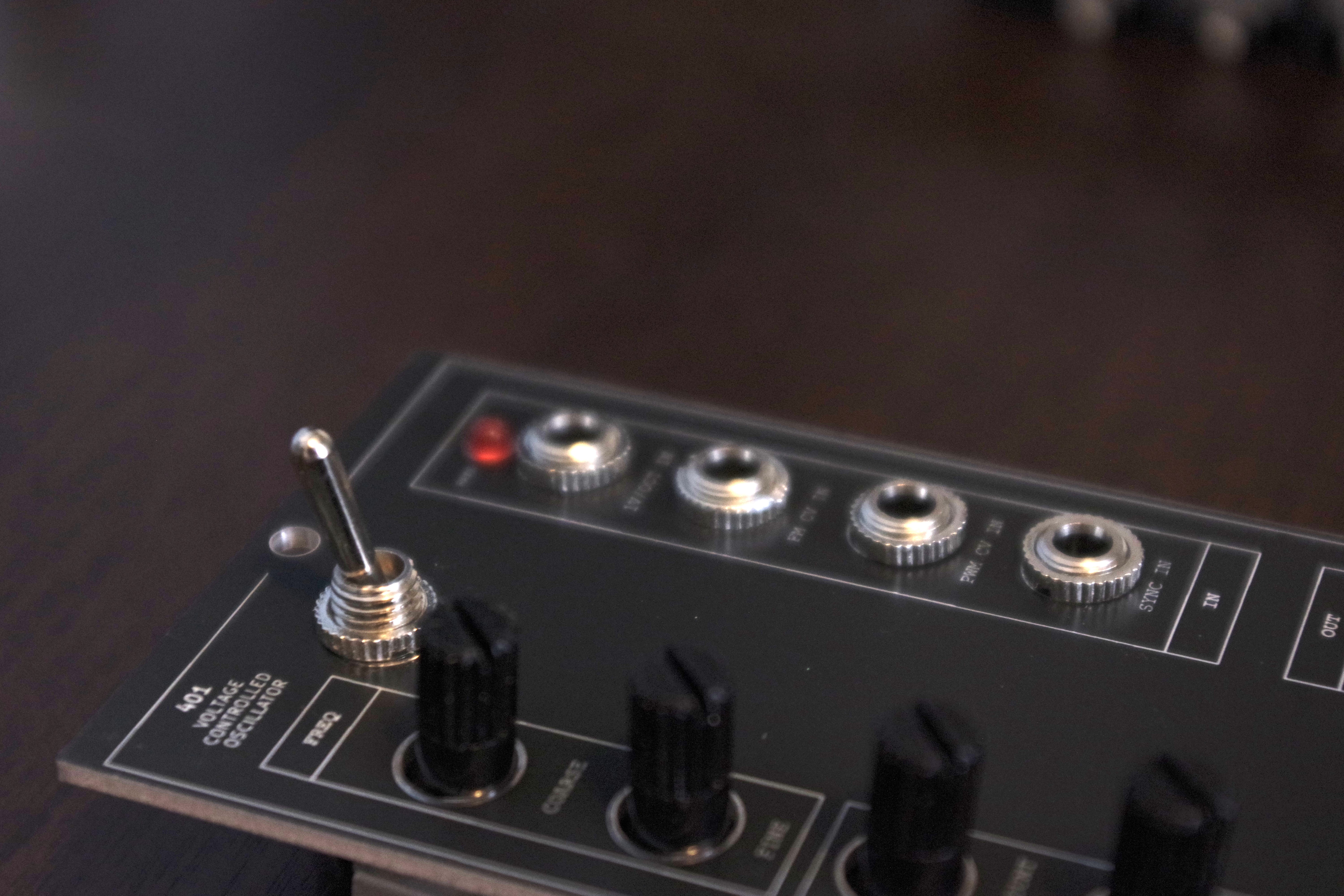

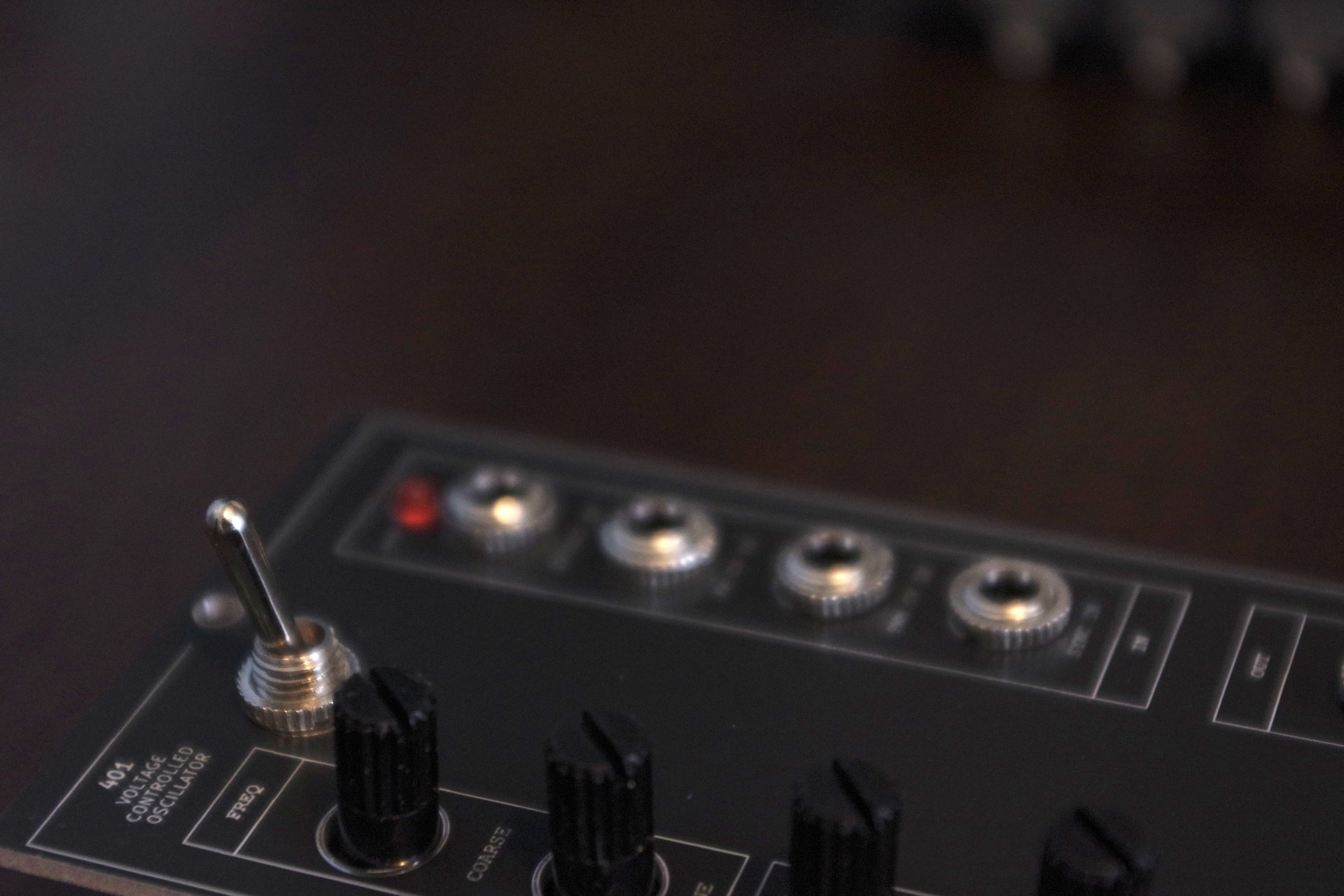

Front‑Panel Controls
Coarse Tune — wide‑range pitch setting
Fine Tune — micro‑adjustments for accurate tuning
FM Amount — manual FM control
PWM Amount — manual pulse‑width control
Polarity Switch — flips phase of all waveforms by 180°
Core Architecture
Temperature‑compensated exponential converter
High‑headroom triangle/saw core
Comparator‑based square generation
Triangle‑to‑sine waveshaper
Pulse‑width comparator with manual + CV offset
Sub‑oscillator (divide‑by‑2)
Buffered outputs for consistent levels across patch loads
Global polarity stage for 0°/180° phase switching
This architecture ensures stable tuning, low noise, and musical response across the full audio range.
LED Indicator
A signal LED for monitoring signal rate. The LED is driven from the core for consistent brightness and is isolated for minimal noise injection to active audio and CV signals.
Mechanical Specifications
Panel width: 10HP (50.5mm)
Panel height: 128.5 mm (3U) Eurorack standard
Mounting: 2× M3 holes (3.2mm clearance) Eurorack standard
Depth: compatible with skiff‑friendly cases
Power
Standard Eurorack 10‑pin power header
+12 V / −12 V rails
Reverse‑polarity protection on the core
Low‑noise linear architecture
*This is a preorder item
*Release of the 401 VCO is planned for Early 2027 for general availability
